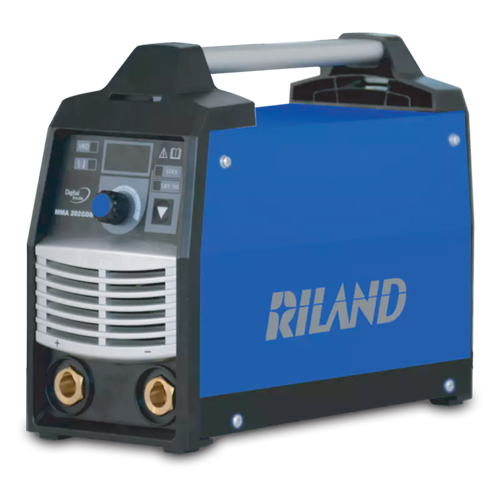

Welder Inverter MMA202GDM

Code: 9130525050

N$3,409.00

Status: In Stock

Features

Features

Individually engineered integrated CPU for intelligent control

Comes with diverse features, including built-in anti-stick, arc force, and hot arc start

Adjustable settings for arc force and hot arc start

Enhanced operator safety through VRD anti-shock protection

Offers a variety of stick electrode options, compatible with Ø2.5/3.2mm electrodes

Versatile applications, suitable for acid, basic, and cellulosic electrodes

Includes TIG welding functionality for seamless mode transitions

Specifications

Specifications

Power voltage (V): 1 phase 230V±15%

Frequency (Hz): 50/60

Rated input current (I1max/A): 38.7 (MMA) 24.7 (TIG)

Max. effective input current (I1eff/A): 19 (MMA) 12 (TIG)

Output current range (A): 40-190 (MMA) 10-190 (TIG)

Output voltage range (V): 21.6-27.6 (MMA) 10.4-17.6 (TIG)

Duty cycle (%): 25%

No-load voltage (V): U0=64, Ur=16

Power factor: 0.73

Efficiency (%): 80%

Insulation class: Class F

Protection grade: IP21S

Weight (kg): 4.3

Dimensions (mm): 288 × 126 × 234
