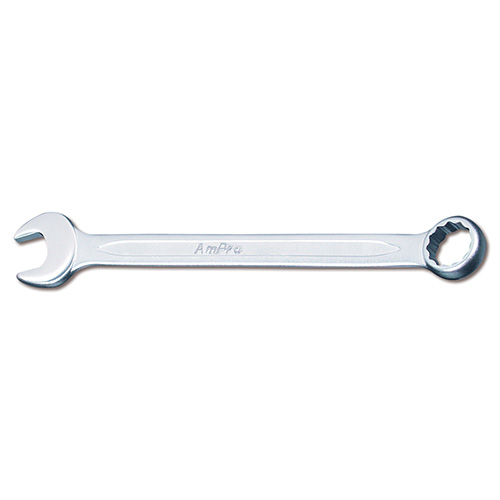

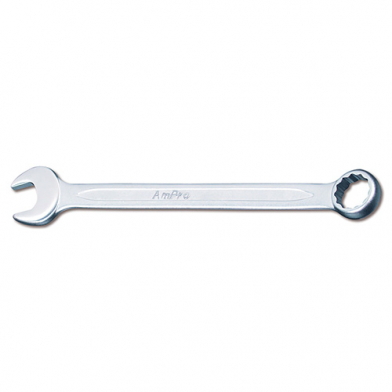

AMPRO Combination Spanner

N$102.00

Status: In Stock

Qty:

Ring- or Open end Spanner

Features

- 15-Degree Offset at Box End

- 12pt Convex Drive

- Satin Chrome Finish

- Thin-Wall Construction

- Chrome Vanadium steel

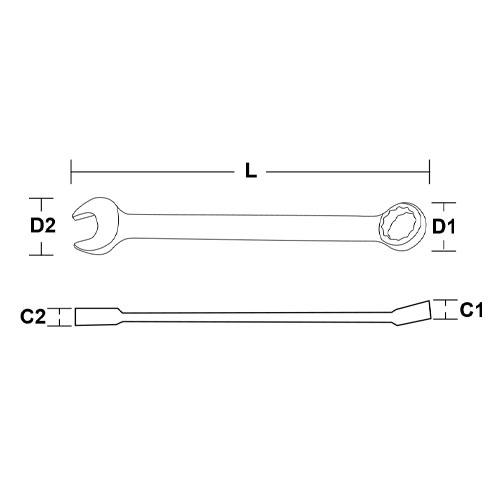

Model	Size (mm)	L (mm)	C1 (mm)	C2 (mm)	D1 (mm)	D2 (mm)
T40106	6	105	4.7	4.2	10.1	15.5
T40107	7	115	5.0	4.4	11.5	17.0
T40108	8	125	5.5	4.6	12.8	19.2
T40109	9	135	5.9	4.8	14.2	21.2
T40110	10	145	6.5	5.0	15.6	23.2
T40111	11	155	6.9	5.4	16.9	25.3
T40112	12	165	7.3	5.5	18.3	27.2
T40113	13	175	7.3	5.9	19.7	29.4
T40114	14	185	8.3	6.2	21.2	31.5
T40115	15	195	8.6	6.4	22.5	33.2
T40116	16	205	8.9	6.7	24.0	34.7
T40117	17	215	9.3	6.9	25.3	36.5
T40118	18	225	9.9	7.2	26.8	38.7
T40119	19	235	10.5	7.4	28.1	40.7
T40120	20	245	10.9	7.7	29.7	43.1
T40121	21	255	11.3	8.0	31.3	44.8
T40122	22	265	11.5	8.2	32.6	46.9
T40123	23	275	11.8	8.4	34.2	48.3
T40124	24	285	12.1	8.7	35.5	50.4
T40125	25	295	12.5	8.9	36.9	52.0
T40126	26	305	12.8	9.2	38.2	53.6
T40127	27	315	13.1	9.4	39.6	55.7
T40128	28	325	13.3	9.7	40.9	57.6
T40129	29	335	13.5	9.9	42.3	59.7
T40130	30	345	13.7	10.1	43.7	61.8
T40132	32	365	14.3	10.4	46.4	65.8
T40134	34	380	15.0	10.7	48.8	69.2
T40136	36	410	19.4	13.5	53.0	74.0
T40137	38	430	20.4	15.0	56.0	77.0
T40138	41	460	21.6	16.0	61.0	84.0
T40140	46	500	23.0	17.0	66.0	92.0
