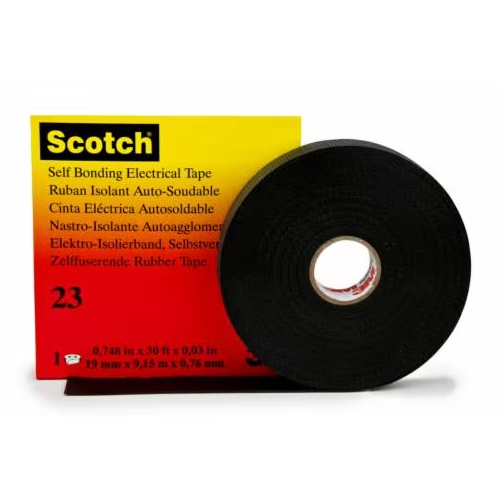

Tape Scotch No 23 Rubber

Scotch® Rubber Splicing Tape 23 is a premium, highly conformable, self-amalgamating Ethylene Propylene Rubber (EPR), high voltage insulating tape. Scotch® Tape 23 has a liner that is easily removed as the tape is applied.

Scotch® Tape 23 is rated up to 90°C continuous operating temperature with a short term emergency operating temperature of 130°C, and can be used for low and high voltage (through 69 kV) applications.

Utilises an easy to remove liner that protects the tape until just before use

Self-fusing material creates a moisture tight seal

Dissipates heat well for stable, long lasting splices

Physical and electrical properties remain unaffected by degree of stretch

Suggested Applications

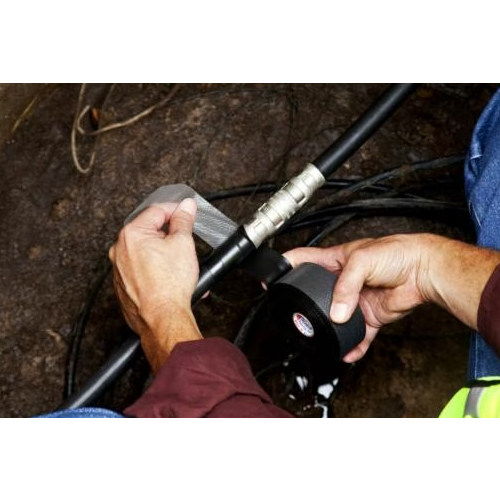

Primary electrical insulation for splicing all solid dielectric cables through 69 kV

Moisture sealing electrical connections

Jacketing on high voltage splices and terminations

Adhesive Material: Rubber Resin

Dielectric Strength: 31.5kV/mm

Elongation: 1000 Percent

Emergency Overload Temperature (Celsius): 130°C

Insulated: Yes

Length: 9.15 m

Maximum Operating Temperature (Celsius): 130 Degree Celsius

Operating Temperature (Celsius): Up to 90 °C

Self-Extinguishing: No

Self-Sticking/Amalgamating: Yes

Size (WxL): 19 mm x 9.15 m

Thickness: 0.76 mm

Suitable for High Voltage: Yes

Tape Colour: Black

Tape Grade: Professional

UV Resistant: No

Vulcanizing: Yes
