AMPRO

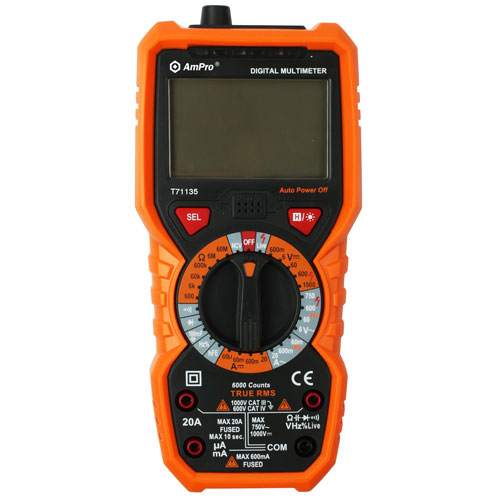

Multimeter Digital

Code: 9128571135

N$909.00

Status: In Stock

Read Review(s) | Log in to Review

6000 Counts True RMS Digital Multimeter

Features

Features

• Measures AC/DC voltage & current, resistance, capacitance and frequency

• Tests diode, triode, battery and continuity

• Overload and short circuit protection

• Non-contact voltage detection with wire or cable identification diode test (high, medium, low indication)

• Display: 6000 Counts

• DC voltage: 1000V

• AC voltage: 750VDC

• AC/DC Current: 10A

• Resistance: 60MΩ

• Capacitance: 100MF

• Duty cycle: 5~95%

• Frequency: 10MHZ

• Low battery indication

• Backlight

• Data hold

• Auto power off

Specifications

Specifications

Counts

6000

Automatic / Manual Range

Automatic

Measurement

Measuring Range

Accuracy

DC Voltage

600mV / 6V
60V / 600V
1000V

±（0.5%+3)

AC Voltage

6V / 60V

0.8%+3

600V / 750V

±（1.0%+10）

DC Current

60μA / 60mA / 600mA

±（0.8%+3)

20A

±（1.2%+3)

AC Current

AC Current

±（1.0%+3)

20A

±（1.5%+3)

Resistance

600Ω / 6kΩ
60kΩ / 600kΩ
6MΩ

±（0.8%+3)

60MΩ

±（1.2%+30)

Capacitor

6nF / 60nF / 600nF
6μF / 60μF
600μF / 6000μF

±（4.0%+3)

100000μF

±（5.0%+3)

Frequency

9.999Hz / 99.99Hz /
999.9Hz / 9.999KHz /
99.99KHz / 999.9KHz /
9.999MHz

±（1.0%+3)

Duty Cycle

5%~95%

±（2.0%+3)

Diode Test

√

Temperature

-20℃~1000℃

±（1.0%+3)

-4℉~1832℉

±（1.0%+3)

Data Retention

√

Backlight

√

Pass Test

√

Safety Grade

EN61010-1-2-030, CATⅢ1000V CAT,
Ⅳ600V EN61010--2-033

Product Size

190mm x 89mm x 50mm

Battery

4 x 1.5V AAA Battery
