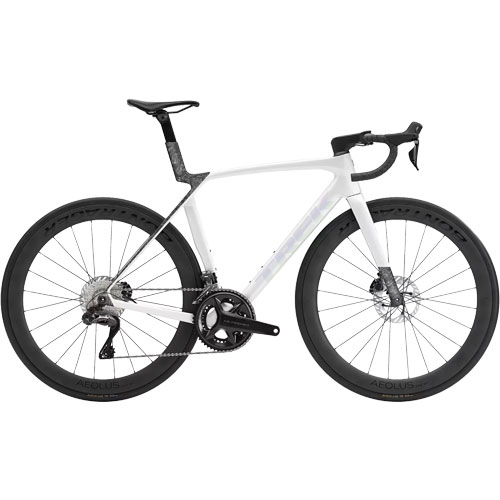

Trek Madone SL 7 Gen 8 Large Gloss Crystal White/Matte Deep Smoke

The Trek Madone SL 7 Gen 8 is a high-performance road bike featuring a lightweight 500 Series OCLV Carbon frame, aerodynamic tube shaping and an IsoFlow seat tube. Equipped with a Shimano Ultegra Di2 12-speed electronic drivetrain, Bontrager Aeolus Pro 51 OCLV Carbon wheels and hydraulic disc brakes, it is designed for fast and efficient road riding.

Features & Benefits

• 500 Series OCLV Carbon frame – Lightweight carbon construction with Full System Foil tube shaping and IsoFlow seat tube technology.
• Madone Gen 8 full-carbon fork – Features a tapered carbon steerer and internal brake routing.
• Shimano Ultegra Di2 12-speed drivetrain – Provides electronic shifting for precise gear changes.
• Shimano Ultegra 50/34 crankset – Equipped with a 172.5mm crank length for the Large frame size.
• Shimano Ultegra 11–34T cassette – Provides a wide range of gearing for varied road conditions.
• Bontrager Aeolus Pro 51 OCLV Carbon wheels – Lightweight carbon wheels designed for aerodynamic road performance.
• Tubeless-ready tyres – Bontrager Aeolus Pro 700 × 28mm tyres with aramid bead and 120 TPI construction.
• Hydraulic disc brakes – Shimano CL800 centre-lock brake rotors provide controlled braking performance.
• Aerodynamic carbon components – Includes an OCLV Carbon handlebar and Madone aero carbon seatpost.
• Large frame size – 58cm frame designed for riders approximately 179–188cm tall with an 84–88cm inseam.

• Frame Material: 500 Series OCLV Carbon
• Frame Size: L (58cm)
• Recommended Rider Height: 179–188cm
• Recommended Inseam: 84–88cm
• Fork: Madone Gen 8 full carbon, tapered carbon steerer
• Battery: Shimano BT-DN300
• Shifters: Shimano Ultegra R8170 Di2, 12-speed
• Front Derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
• Rear Derailleur: Shimano Ultegra R8150 Di2, 34T maximum cog
• Crank: Shimano Ultegra R8100, 50/34, 172.5mm length
• Bottom Bracket: Praxis, T47 threaded, internal bearing
• Cassette: Shimano Ultegra R8101, 11–34T, 12-speed
• Chain: Shimano Ultegra/XT M8100
• Front Wheel: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100 × 12mm thru axle
• Rear Wheel: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142 × 12mm thru axle
• Tyres: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 TPI, 700 × 28mm
• Maximum Tyre Size: 32mm
• Saddle: Bontrager Aeolus Elite, austenite rails, 145mm width
• Seatpost: Madone aero carbon, 0mm offset, short length
• Handlebar: Bontrager Aero Pro, OCLV Carbon, 31.8mm, 80mm reach, 124mm drop, 39cm control width, 42cm width
• Handlebar Tape: Trek EcoTack
• Stem: Trek RCS Pro, -7°, 100mm length
• Brake Rotors: Shimano CL800, centre-lock, 160mm
• Maximum Brake Rotor Size: 180mm front, 160mm rear
• Colour: Gloss Crystal White and Matte Deep Smoke
