Solar Campers Kit With

Code: 9131001043

N$7,019.00

Status: Out of Stock Online

Read Review(s) | Log in to Review

Qty:

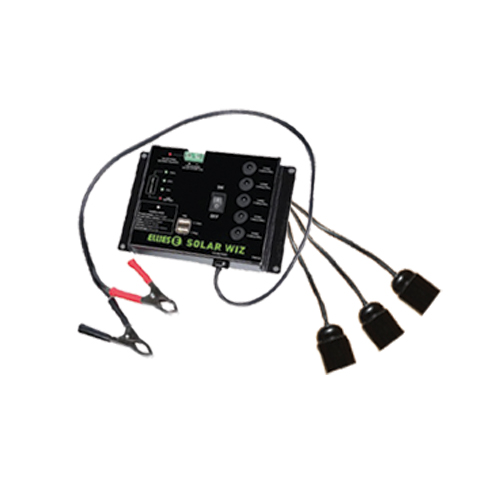

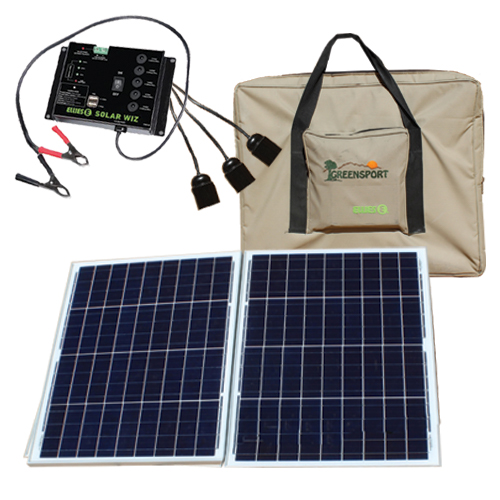

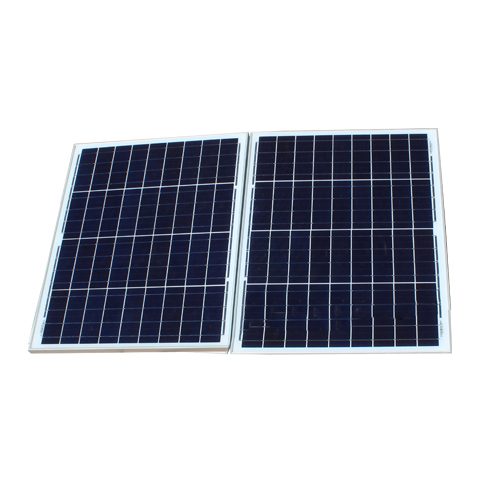

Folding Solar Panel Regulator and 3x Light Fittings

Features

Once connected to a battery and a PV module, the system provides two USB outputs for cell phone and tablet charging as well as five 12V outputs for connecting to LED lights or a small 12 Volt TV and decoder or anything else that requires 12V DC power. The system manages the battery charge and discharge and shows the status and capacity of the battery.

Digital micro-controller for improved features and accuracy.
PWM mode charger. Fully automatic operation (no adjustments neccessary).
5 x12V DC outputs suitable for loads up to 1.5Amps / 18W max. on each output socket.
Reverse Battery and PV protection.
Suitable for PV panels up to 280W.
(36 cell, 20-25Voc) Battery level indicator.
Reverse polarity indicator for solar panel connection.
DC Output Overload and Over Voltage protection.
5 stage automatic battery charging.
Selectable battery depth of discharge control (50% or 90%).
Selectable battery equalisation charge (ON or OFF)
2 USB ports for charging.

Specifications

TECHNICAL INFORMATION
12VDC battery input range	10.6 - 15.2VDC
12VDC output voltage range	11.0-14.5VDC
Solar panel input CELL configuration	12VDC 36cell ±23VOC
Solar panel input voltage range	16-27VDC
Max. Solar panel power	280W
Max. Solar panel input current	15A
Max. USB1 output current	1.1A
Max. USB2 output current	2.1A
Max. output current/power per 12 DC socket	1.5A / 18Watt
Max. current demand from battery fully loaded	9A
Compatible battery types	Lead acid type only
Working temperature	5 - 50°C
Charge modes	5 (Pre, Bulk, Absorb, Float and Equalize)
Max. battery discharge disconnect (%)	50% or 90% selectable
Bulk charge voltage	14.2V
Float charge voltage	13.8V
Equalize charge voltage	14.8V
Materials	mild steel & alluminum
Battery connector type	Clamps
Battery cable length	73 cm
Solar connector type	Terminal block
Product dimensions	169 x 117 x 32 mm
Mounting dimensions	159 x 112 mm
